Gobi Collector Mounting Hardware Kits
Use this Table to determine the hardware kits necessary to flush or rack mount 2 to 8 collectors in an array.
Helio-Pak and Helio-Flo solar water heaters come standard with either Flush Mount Hangerbolt Kit FLSH 000 000 or Rack Mount Standard Kit RACK 000 001B |
Single Collector Kits
|
| _______________________________________________________________ |
 |
FLSH 001 000
Flush Mount
Includes 4 mounting clips and 4 hanger bolts.
See price
|
| _______________________________________________________________ |
 |
RACK 000 005
Side Rack Kit with 47" rear legs.
See price |
RACK 000 006
Side Rack Kit with 30" rear legs.
See price |
RACK 000 007
Rear Flangefoot Kit for Side Racks 005 & 006. Attaches to pivot feet.
See price
|
RACK 000 008
Side Rack Kit with Pivot Feet
30" rear legs, pivot feet front and back.
See price
|
| _______________________________________________________________ |
 |
RAIL 001 000B
Rail Kit for 1 Collector
4ft. span rail used to mount 1 collector. Includes 2 rails and 1 set of GOBI brackets.
See price
|
| _______________________________________________________________ |
Collector Rail Kits
|
| _______________________________________________________________ |
 |
RAIL 002 000B
Rail Kit for 2 Collectors
8ft. span rail used to connect 2 or more collectors. Includes 2 rails and 2 sets of GOBI brackets.
See price
|
| _______________________________________________________________ |
 |
RAIL 000 001
Rail Splice Kit
Splice kit for joining 2 sets of rails.
See price
|
| _______________________________________________________________ |
Flush Mount Collector Kits
|
| _______________________________________________________________ |
 |

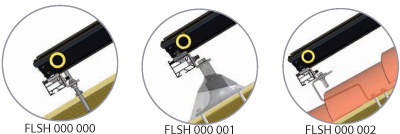

FLSH 000 000
Flush Mount Hangerbolt Kit
Includes 2 rail clamps and 2 hanger bolts
Standard Flush kit included with Helio-Flo and HelioPak solar water heater systems.
See price
|
| _______________________________________________________________ |
 |
FLSH 000 001
Flush Mount Flangefoot Kit
Includes 2 rail clamps and 2 flush flange feet.
See price
|
| _______________________________________________________________ |
 |
FLSH 000 002
Tile Mount Kit
Includes 2 tile mount brackets and 2 rail clamps.
See price
|
| _______________________________________________________________ |
Rack Mount Collector Kits
|
| _______________________________________________________________ |
 |
RACK 000 001B
Rack Mount Standard Kit
Includes 2 rack flange feet, 47" rear leg, 4" front leg and 2 rail feet.
Standard Rack kit included with Helio-Flo and HelioPak solar water heater systems.
See price
|
| _______________________________________________________________ |
 |
RACK 000 002B
Rack Mount Extended Front Leg Kit
Includes 2 rack flange feet, 47" rear leg, 8" front leg and 2 rail feet.
See price
|
| _______________________________________________________________ |
|
RACK 000 003B
Rack Mount Extended Rear Leg Kit
Includes 2 rack flange feet, 65" rear leg, 4" front leg and 2 rail feet.
See price
|
| _______________________________________________________________ |
*It is the installer's responsibility, and that of the engineer of record, to verify the roof structure is capable of handling the installation's point loads, and to verify the hardware does not experience loads greater than the maximum allowable as specified by Helidoyne. Refer to local codes for information on loading in your area.
Use this table to determine the number and type of mounting hardware kits necessary to rack mount 2 to 8 collectors in an array.
For example, If installing two collectors on a flat roof with a standard rack-mount kit, order one RAIL 002 000B and three RACK 000 001B.
*It is the installer’s responsibility, and that of the engineer of record, to verify that the roof structure is capable of handling the installation’s point loads, and to verify the hardware does not experience loads greater than the maximum allowable as specified by Heliodyne. Refer to local codes for information on loading in your area.
