Gas Pool Heaters

Raypak Digital

Model: R Series
NOTICE:  Southern CA and TX law requires Low Nox units
Units delivered and installed in these areas must select Low Nox.

GAS Pool Heaters – Discover quality alternative heating options
to be sure that Gas Heating is the right choice for your pool…

Were you aware propane or natural gas has the highest operating
cost, and is the least efficient / cost effective way to heat a pool?

If you require rapid heat up, constant temperature regardless of
outside temperature, or you are heating a spa or hot tub, then the
gas heater below may be right for you.

ALERT » View other higher efficiency options
. Side-by-side major heating systems comparison guide reviews
. the details on Gas Heaters, and how they compare to the two
. other major heating methods - Heat Pumps and Solar

HELP » Contact Customer Support

. Toll-Free help line offering system selection support

___________________________________________________________

___________________________________________________________

VIEW » Models Specifications

VIEW » How to Choose the Right Size Heater
___________________________________________________________

Raypak Digital is one of the Energy Supermarket's top selling brands, its advanced design engineered and built to last, earns a 5 plus star rating in our Consumer Value guide!

Raypak offers a complete line of gas heaters to fit almost every application. Inside and out, the Raypak Digital is the result of over 50 years experience in the design, engineering and manufacturing of all types of residential and commercial pool, and water heaters. So dive in and take a look at the Raypak Digital that can meet your exact needs.
___________________________________________________________

Enjoy your pool...
Extend your swim season!

Your pool and spa are long term investments that you, your family and friends will enjoy year after year.
Now there is an easier way to enjoy that investment more often, more reliably and more efficiently throughout the year...

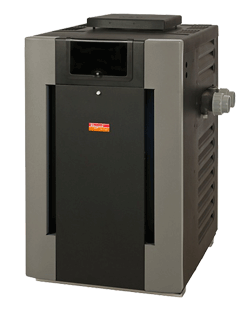

The Raypak Digital

Built Raypak tough.
Built to last.


___________________________________________________________

Raypak gas heaters will effortlessly raise your pool's temperature well into the 80-90 degree range, and/or your spa to 104 degrees, generate a rapid heat-up, plus ensure a constant temperature regardless of weather conditions.

In addition to warming the water, the swimming season can be extended in cooler climates by as much as 50 percent. Raypak units require little to no maintenance, and typically last 5 to 10 years, or more.



___________________________________________________________

Available in Natural Gas or Liquid Propane

Raypak Digital Standard Features for all models

Wind Resistant

.
Built-in Wind Resistant Design
The Raypak Digital has the best outdoor design in the market today. With over 50 years in designing and building gas heaters, Raypak has put all that experience into its newest design. No need for fans to combat drafting problems, the Raypak Digital was designed for outdoor installations with its exclusive low profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters: falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc. In fact it is so efficiently designed it ensures uninterrupted heating performance regardless of all but the most extreme weather conditions.

Cabinet

. Smart Design
One look will tell you that the Raypak Digital is different! The look is contemporary. The design is advanced. And inside and out it's engineered to last. The attractive forest green and charcoal gray panels complement the latest pool and spa equipment designs. Raypak's original "pagoda top" design will keep the Raypak Digital operating even in extreme wind conditions and downdrafts.

. Polytuff Powder Coating
The Raypak Digital has a polyester coated, non-corrosive cabinet that is more durable than solventborne and waterborne coated metal cabinets. Every piece of sheet metal that gets powder coated goes through a 7-stage wash system making certain the powder paint has a perfect bond. Underneath the tough and beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service.

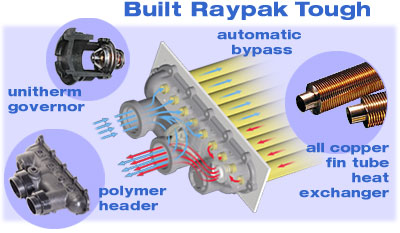

Non-Corrosive Waterways

. Polymer Header
The Raypak Digital incorporates the latest in header design technology. Raypak's state-of-the-art engineering department utilized the latest in 3-D computer aided design to engineer the part for optimal performance. Polymer resin headers prevent rust stains from harming your pools surface giving you years of trouble-free swimming pleasure

. All Copper Fin Tube Heat Exchanger
All Raypak Digital gas heaters come standard with integral copper finned tube. This means that the fin tubing is made from one piece of extruded copper tube. Since the fins are integral to the tube, maximum heat transfer is attained. Every Raypak Digital has the same robust design tube bundle that we use in our large gas commercial boilers.

. Unitherm Governor
Raypak engineered the Unitherm Governor specifically for pool heater applications, regulating low temperature incoming water, to help reduce condensation. The Unitherm Governor automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105°F. Both water temperature and water flow rate are controlled to eliminate condensation, sooting, and scale buildup that can shorten heater life.

. Automatic Bypass
No need to worry about large pumps or high flow systems. The Raypak Digital comes with an automatic bypass built into the header. You'll find that the Raypak Digital delivers the industry's lowest pressure drop and highest water flow rate - up to 125 gallons per minute - exceeding the maximum recommended for 2" plumbing systems. More hot water moves through faster and more efficiently.

. Stainless Steel Tube Sheet
Stainless steel tube sheets are used on all Raypak Digital heaters that use the Polymer resin headers. This allows for a completely nonferrous waterway leaving your pool truly rust-free.

. CPVC 2" Water Connections
Standard with every Raypak Digital is a set of 2" slip fit CPVC water connections to make your installation secure and effortless.

. Fuel Efficient
Efficient? You bet. Energy-smart Raypak heaters consistently achieve the highest efficiency ratings and the Raypak Digital is no exception. It exceeds all federal and state standards.

Combustion Chamber

. Burner Tray
Every Raypak Digital burner tray is built to last. From the stainless steel burners to the aluminized metal used in the heat sensitive areas. In the event that anything should happen to your burners they can be quickly and easily serviced. One more reason why the Raypak Digital is made to take the work load year after year.

. Fire Tile
A ceramic fiber combustion box keeps your Raypak running efficiently and keeps the outside jacket cool. By using this space-age material the Raypak won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.

Quality

. ISO 9001
Raypak is proud to be an ISO 9001 registered manufacturing plant. One more reason why Raypak is number one in the heater industry today.

. End-of-Line Test
Every Raypak gas pool heater is plumbed and test fired before it is put in the carton. This ensures that your heater will fire right out of the box and continue to give you years of trouble-free operation.

. Quality Checkpoints
The Raypak assembly process includes 6 final assembly quality checkpoints that help to ensure that each and every Raypak Digital is built correctly, and built to last.

. CSA Certified
All of Raypaks products are CSA certified. The R series are tested by CSA to the ANSI Z21.56 standard.

___________________________________________________________

Raypak Millivolt Features

Simple Controls

. Mechanical Thermostat
Raypak Millivolt gas heater comes with one mechanical thermostat. This control allows you to set your pool or spa temperature precisely at your favorite setting. Just set it, and forget it! Truly simple.

. Millivolt Controls
No power source is required for Raypak Millivolt heater. All operating
electricity is supplied by the pilot thermocouple.

___________________________________________________________

Raypak Digital Features

Digital Controls

. Microprocessor Controlled Thermostat
Raypak Digital gas heater comes with a microprocessor based thermostat control. This control allows you to set your pool or spa temperature precisely at your favorite setting just by pressing an up or down temperature control button. The Digital display gives you a constant read out of your pool water temperature. Just set it, and forget it! Truly simple.



. Self Diagnostic
Troubleshooting a gas heater has never been easier. Raypak Digital has on-board diagnostic controls that let the user and the service professional know what is going on with the heater at all times. In the event that you would ever have a problem with the heater, the digital display will show where the problem is in the control circuit. It's like having a service technician built into every heater!

. Remote Compatible
Raypak Digital is compatible with most major pool control and remote systems on the market today. Any two-wire or three-wire remote can connect to the Raypak Digital and be integrated into the pool control system of your choice.

. Electronic Ignition
Raypak Digital heaters come standard with intermittent spark ignition pilot safety controls. What this means is that the pilot only comes on when there is a call for heat. This is a more energy efficient way to control you heaters gas usage by not having a standing pilot. Raypak has been using the same reliable electronic pilot ignition design for over 20 years.

___________________________________________________________

IMPORTANT Notes:
. Use in high wind areas requires a High Wind Stack.
. Indoor installation requires Indoor Draft Hood.
. [Both purchased separately]


___________________________________________________________



Raypak Digital Specification

Model R206A R266A R336A R406A
"A" Cabinet Width 20" 23" 26" 29"
"B" Flue Diameter 6" 7" 8" 9"
"C" Indoor Drafthood 61-5/8" 62" 63" 64-1/2"
"J" 11-7/8" 11" 10-5/8" 12-5/16"
Gas Conn. 3/4" 3/4" 3/4" 3/4"
Water Conn. 2" 2" 2" 2"

BTUs

Nominal
BTUs
199,000 265,000 335,000 405,000
Millivolt Ignition - Natural
Actual BTUs
261,000 333,000 405,000
Millivolt Ignition - Propane
Actual BTUs
265,000 333,000 405,000
Electronic Ignition - N or P
Actual BTUs
265,000 335,000 405,000

• How to Choose the Right Size Heater:
• Proper heater size is based on the time required to heat pool or spa.
• If water is heated for each intended use, energy-saving rapid
• heating may be appropriate.
• If water is gradually heated to the desired temperature and then
• maintained at that temperature, a smaller heater may be acceptable.

Determine proper heater size using the following formula:
_____ desired water temperature (ºF)
minus
_____ average air temperature (ºF)
equals
_____ required temperature rise (ºF)
divided
_____ req. hrs. to heat pool/spa to desired water temp.
equals
_____ required temperature rise per hour (ºF)
POOL SIZE - SQUARE FEET
square feet
300
400
500
600
700
800
1000
Heater Model
Desired Temperature Rise in ºF per hour
185
1-1/2º
1-1/4º
3/4º
-
-
265
1-3/4º
1-1/2º
1-1/2º
3/4º
-
335
1-3/4º
1-1/4º
3/4º
405
3-1/2º
2-3/4º
2-1/2º
1-1/2º
1-1/4º
SPA/TUB SIZE - GALLONS
gallons
300
400
500
600
500
800
1000
Heater Model
Desired Temperature Rise in ºF per hour
185
59
45
36
30
25
22
18
265
84
63
51
42
36
32
25
335
104
78
63
52
45
40
32
405
128
96
77
64
55
48
38

CONSUMER NOTICES and ALERTS

IMPORTANT Notes:

.
Gas Heater Installation - Upon delivery of unit,
installation of a heater can be performed by homeowner, but The Energy SuperMarket strongly recommends the installation of any new or replacement gas heater be done by trained personnel, a licensed and insured contractor, or by a pool/spa professional.

.
Gas Connections - Actual hook-up of the gas connections and the turn-on of the gas itself are highly recommend, and in most states legally required, to be performed by a licensed and insured plumber, or a gas utility company employee.

. Critical WarningDo not attempt to connect gas lines or turn-on gas yourself! Serious personal injury, damage to the unit and/or home, fire, or explosion could result !!!
___________________________________________________________

Function: Warms pool/spa to 80-90° plus extends season
Benefits: Maximizes your pool/spa investment!

Product Applications:
. Residential and light-duty commercial installations
. Do-it-yourself project; average three hour installation
. Change-out feasible by handy-person / hand tools
. Gas hook-up performed by a licensed professional
.
Easy to read step-by-step installation manual
. Excellent for pools/spas at residential, condo, resort,
. hotel, motel, and vacation home locations
. Supplementing a gas heater with a solar pool cover
. greatly enhances its performance, plus reduces
. energy costs up to 70 percent - thereby saving
. hundreds of dollars per year in pool heating costs!

Product Features:
. System utilizes existing pool pump to circulate water
. Swimming season extended up to 50% in cool climates
. Effective systems perform year round in warm climates
. Heats spa to toasty 104 degrees - maximum legal limit
. Warranty - 5 Year Manufacturer Warranty

. Proper unit selection supported by customer service agent
. Installation supported by engineering tech assistance
. Toll-Free help line and/or online e-mail tech support
. Worldwide shipping available - delivered to your doorstep
. Lowest factory direct pricing available anywhere!
. Guaranteed.

Product Manufacturer: Raypak

NOTICE:  Southern CA and TX law requires Low Nox units.
Units delivered and installed in these areas must select Low Nox.


PDF Download

Install Manual
Raypak Brochure
Technical Data
Raypak Warranty

Gas Heaters for
Inground Pools

RayPak R Series
RayPak LowNOx
Pentair Minimax
Hayward H-Series
Jandy Laars Lite2
Jandy Laars Hi-E2
Jandy Laars LX/LT

Gas Heaters for AboveGrnd Pools

Pentair Minimax
Hayward H-Series

Other Products

Solar Pool Heaters
Heat Pump Heater

Compare Options

Compare solar pool heaters, heat pumps and gas heaters in this side-by-side comparison chart.
Comparison Chart

Learn How To:

Extend your swimming season
