Tubular Skylight, Natural Solar Lighting Quick and Easy Installation

Straight tube installation maximizes light levels.
If required, an adjustable
four section elbow lets
you get the exact angle necessary.

	Locate Placement. Cut hole in ceiling.
	Cut hole in roof. Properly seal flashing.
	Insert tube, measure, cut and secure.
	Attach foam seal, exterior dome, clamp and storm collar.
	Attach interior seals, insulator disk and diffuser. You are ready to let the sunshine in!

________________________________________________________

Flat Roof - Low Profile Mount
(available only for Models 400 and 900)


_________________________________________________

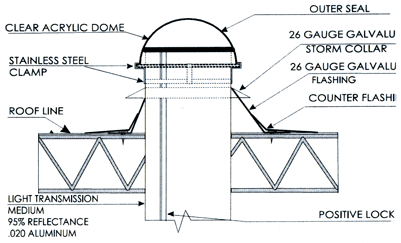

Flat Roof - Standard Roof Mount
